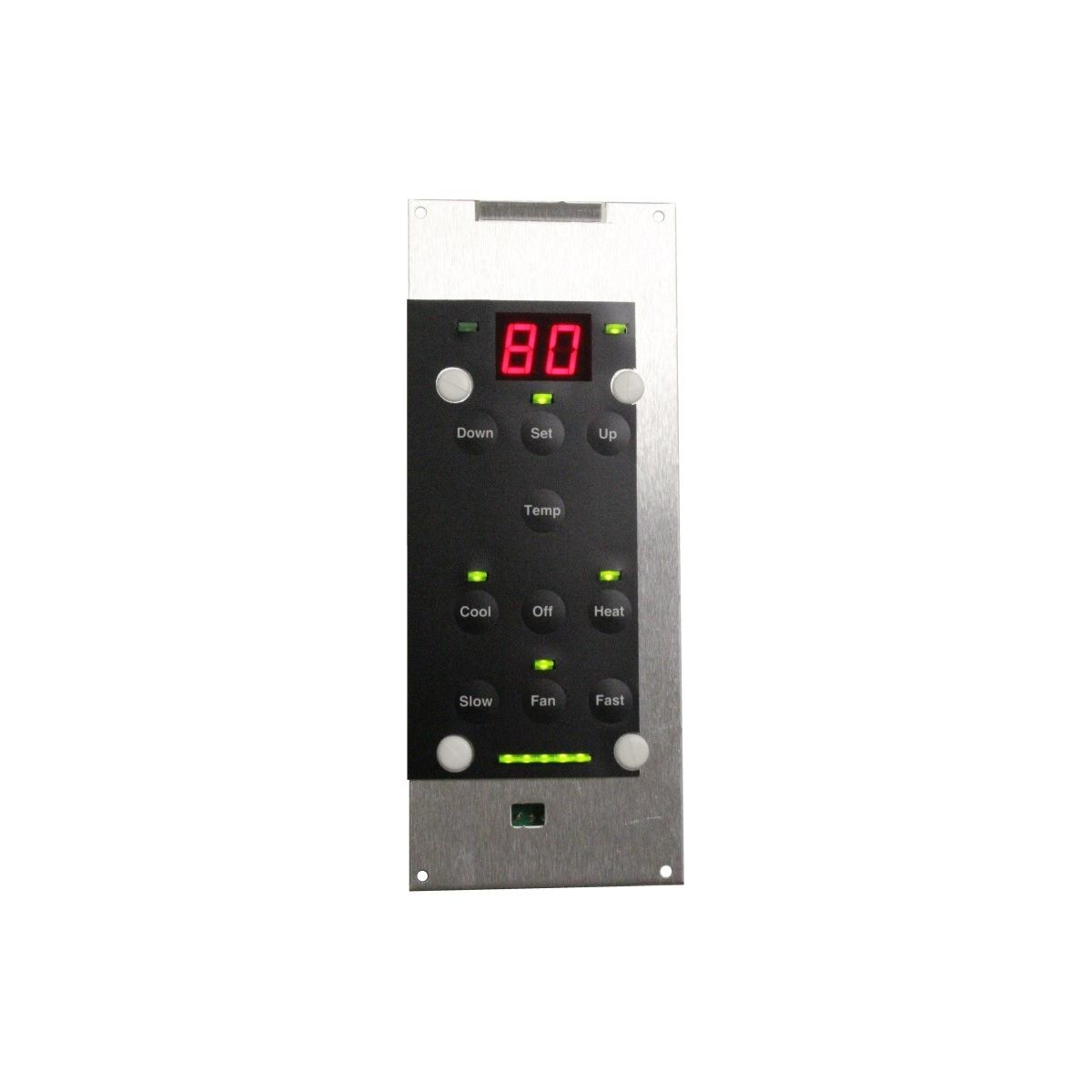

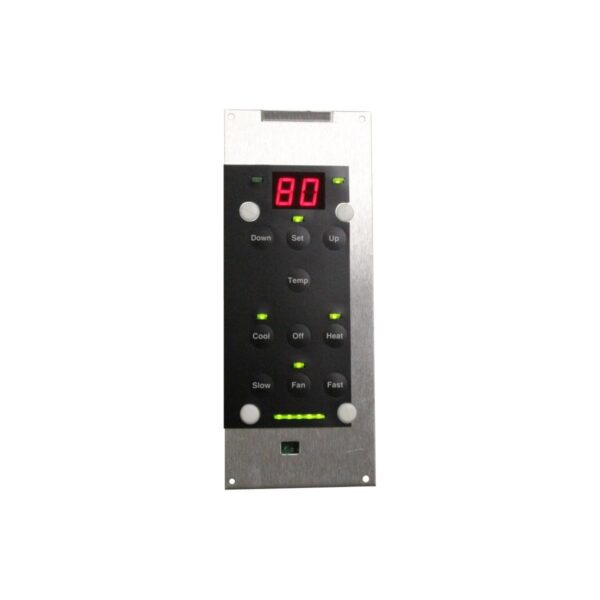

NEW SMX II Keypad / Display – ASY-423-X00
Fits the SMX II (2) Control of Cruisair / Dometic and Micro Air
SMX II COVER PLATES
| SMX COVER PLATE BLACK | 40006O |
| SMX COVER PLATE CARBON FIBER FINISH | 40007O |
| SMX COVER PLATE WHITE | 40009O |
- Completely new designed and manufactured board
- Cover NOT included
- Fully compatible with original Dometic / Cruisair power (logic) boards
- Directly replaces the popular SMX 2 AB marine A/C keypad display
- 4-conductor cable with a Molex connector on each end
- Identical operation as original Dometic SMX II Keypad, wall cutout-compatible
Specifications / Notes
The SMX II AB Keypad display (ASY-423-X00) has a non-corrosive ABS cover and soft-touch membrane switches. All keys are clearly labeled, making the operation simple. The large, easy-to-read digital display shows set-point or cabin temperature and also is used to give information on operating parameters and fault code warnings. Small LEDs are used to indicate system status.
For normal operation, it is only necessary to turn the system on and select the desired set-point. The user can select cooling only, heating only, or automatic changeover between cooling and heating. Fan speed is automatically controlled, or can be manually set. Factory settings may be changed, with user-programmable commands, permitting the boat-owner to fine-tune the system for personal preferences. Programming modes are accessed by pressing special combinations of keys.
Programmable features on the SMX II Keypad include A/C line voltage calibration, temperature calibration, compressor restart time delay, continuous or intermittent fan operation, low and high fan speed adjustment, compressor response differential, Fahrenheit or Celsius temperature display The system’s nonvolatile memory retains all user-programmed settings, even when the power is switched off.
