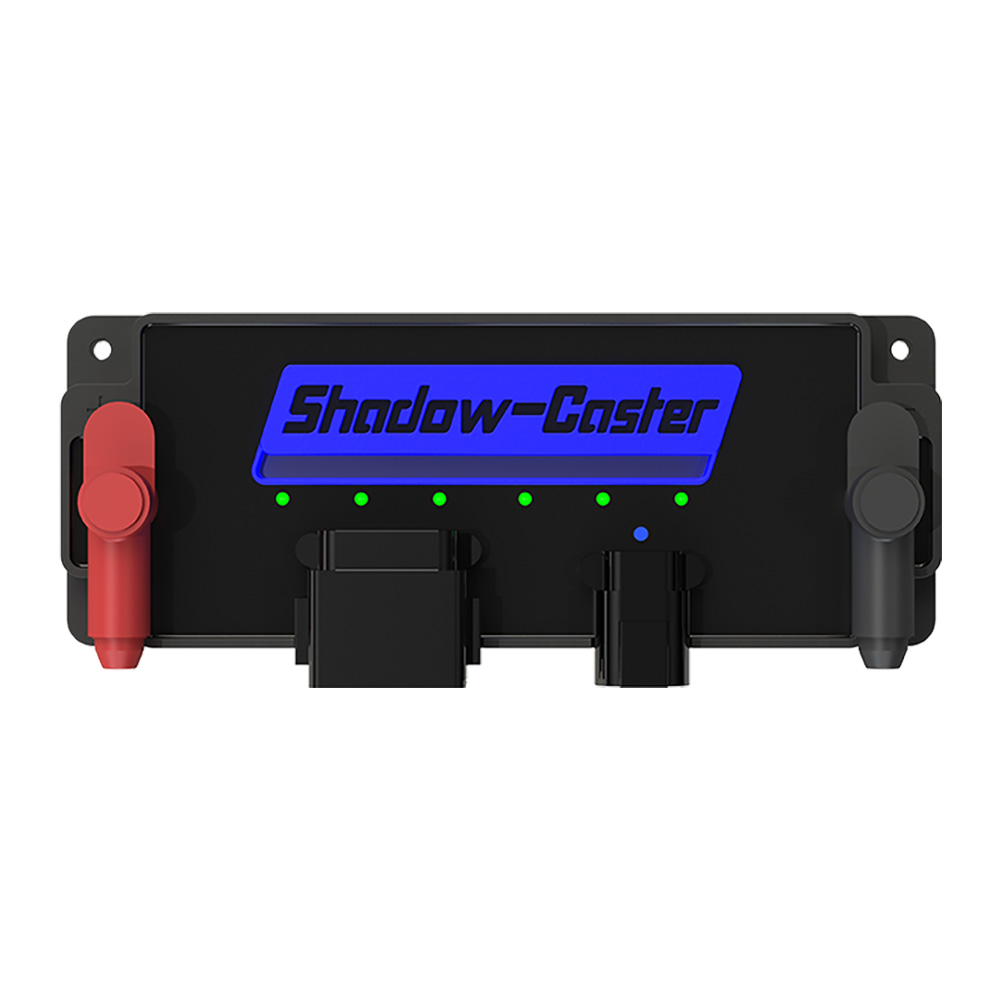

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting
The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.
Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.
Features:
- 6 independent digital switches
- Control other brands of lights with the Shadow-Caster™ MFD interface and phone app
- Digital over current fault protection
- Manual switch override
- Green/red LEDs provide the status of each channel
- Full integration with Shadow-NET™ interface
- The blue backlight indicates the power state
Specifications:
- 12/24V operation
- 10A each channel
- 5/16” power lugs
- IP67 Deutsch connections
- Power lug protection boots
What’s Included?
- 6 channel digital power switch
- Mounting hardware 4 #8 PH x.5”
- Pre-wired mating connectors
- 3 year standard warranty
