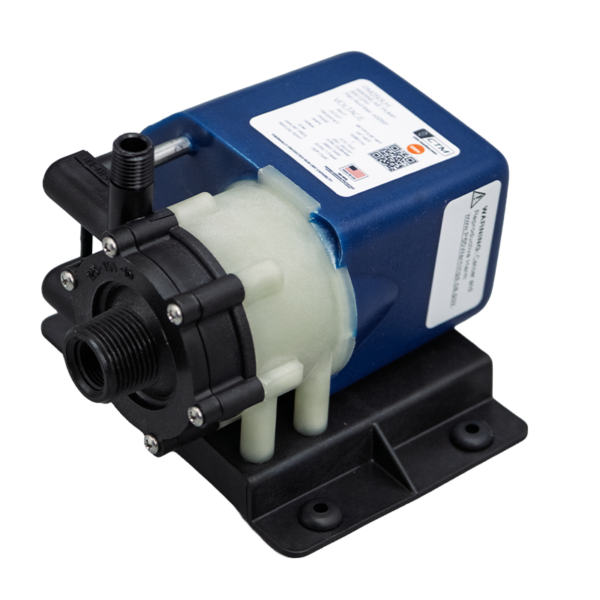

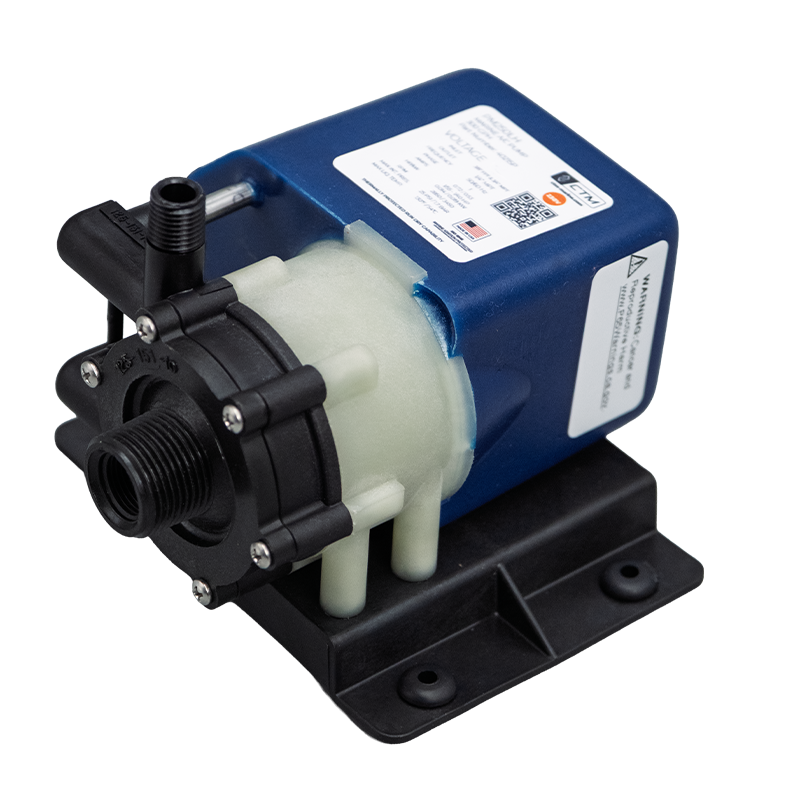

CTM – PM250L – 300 GPH – 115V – Submersible A/C Pump
CTM PM250L is an American submersible seal-less centrifugal magnetic drive pump. 115V – 50/60 Hz – 5GPM (300 GPH) It might be used submerged or not submerged. 3/8″ FPT and 3/4″ MPT Inlet, 1/4″ MPT Outlet. Commonly used for marine air conditioning and fountains.
Operation
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact CTM.
Electrical
Pumps are U.L. Recognized under File No. E80954. U.L. Recognition On Pumps Is For Water Only.
Models PM250L & PM250LH 115 V & 230 V have a 6 ft (1.8 m) cord.
Specifications
Inlet – Outlet: 3/8” FPT & 3/4” MPT – 1/4” MPT
Max Internal Pressure: 25 psi (1.7bar)
Max Liquid Temperature: 130 °F (54 °C)
Dimensions (inches): 4.13 x 4.87 x 6.11
Packed Weight (lbs): 5.20
Dimensions
