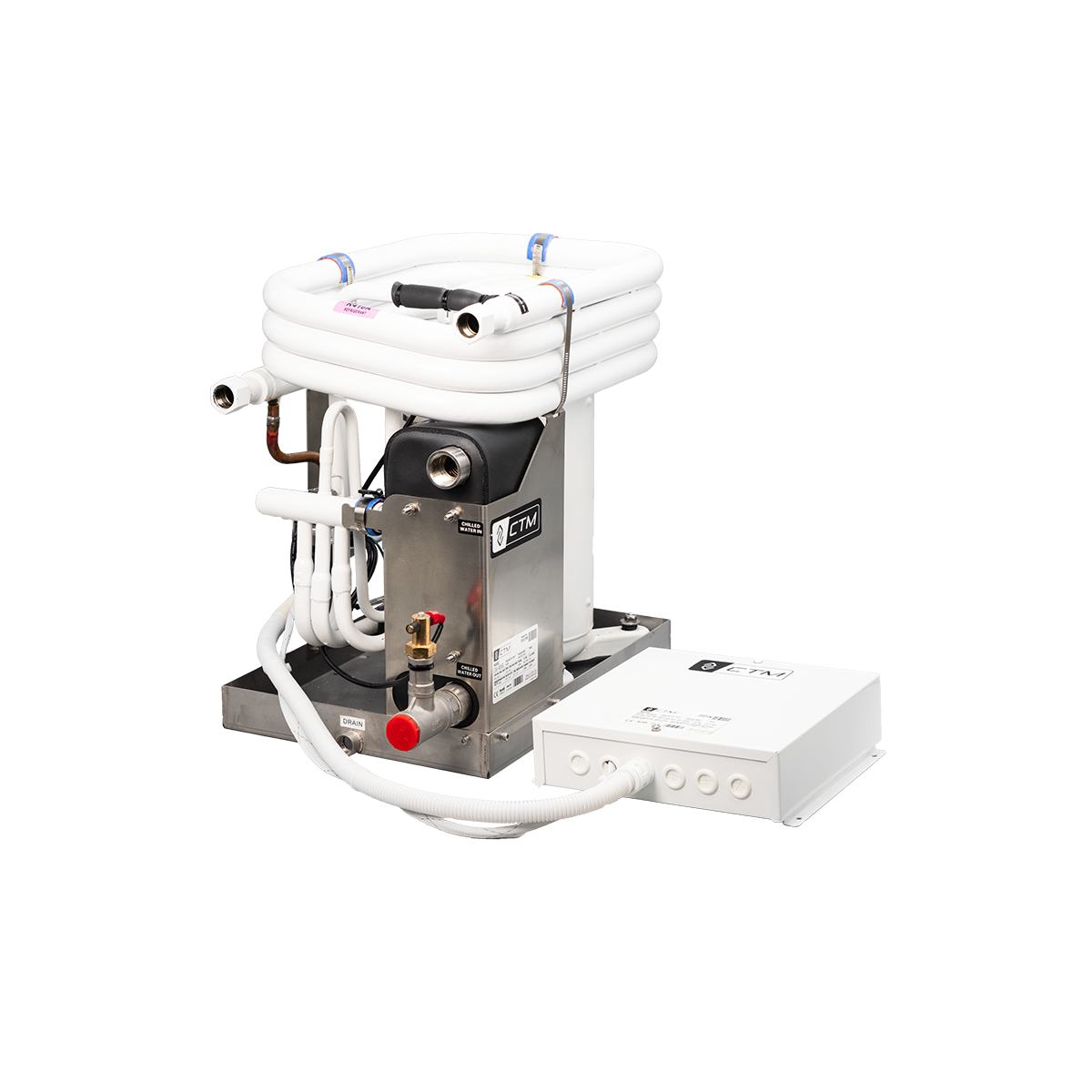

CTM CW-48HS 48,000 BTU Marine Chiller System with Titanium Coils – 230V, 50/60Hz, R410A – With Soft Start
Introducing the state-of-the-art CTM Marine Chiller System, equipped with titanium coils for ultimate performance and durability.
Designed with efficiency in mind, CTM Marine Chillers ensure consistent cooling in even the harshest of marine environments. Titanium coils provide unparalleled resistance to corrosion, making it the perfect material for your onboard air conditioning solution.
The CTM Marine Chiller unit is a great option for not only new installs but also works as an excellent drop-in replacement option for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Flagship.
CTM has taken over a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — has created a marine chiller system that builds on the performance, durability, and efficiency of the top chillers on the market.
The CTM is fully compatible with top Dometic, Cruisair, and Marine Air chiller systems, using the same DDC circuit board and controls, making replacement of those systems a breeze. With a compact footprint, CTM Marine Chillers are the perfect replacement for MCGX and TWCX chillers. For drop-in replacement recommendations, see the substitution table below.
Whether on a yacht, boat, or other marine vessel, you can count on 48,000 BTUs of powerful, quiet, and efficient cooling with your CTM CW-48HS Marine Chiller System. Experience the peace of mind that comes with investing in a high-quality, durable, and efficient cooling solution.
Every CTM Marine Chiller comes with an industry-standard 2-year warranty*, as well as knowledgeable and attentive customer service from CTM Marine and their extensive dealer network.
Soft Start Included – Maximize Your System’s Efficiency
CTM Marine’s 48,000 BTU Marine Chiller System includes a Soft Start board that is self-optimizing, and reduces start up current by 65-75% of the compressor’s LRA (locked-rotor amperage). The Soft Start provides several benefits, including:
– Improves Compressor Performance: Soft starting reduces the initial current surge, which can improve the performance and extend the life of the compressor.
– Reduces Power Consumption: By gradually ramping up the voltage, a soft start reduces the peak power demand and can help reduce overall energy consumption.
– Enhanced Protection: Soft starting helps protect against overloading the electrical system, reducing the risk of damage to the electrical components and ensuring a safe and reliable operation.
– Improved Comfort: Soft starting can reduce the noise and vibrations associated with starting up a compressor, making the operation smoother and more comfortable.
Specifications:
- Capacity
- 48,000 BTU
- Voltage
- 220 / 230 V
- Phase
- 1
- Dual Cycle Compressor
- 50Hz @ 220V / 60Hz @ 230V
- Refrigerant Type
- R410A
- Current Consumption Cool / Heat
- 14.0 A / 19.0 A
- Locked Rotor Amps
- 42 A
- Fuse Max. / Min.
- 65 A / 40 A
- Water In / Out
- 3/4″ / 3/4″
- Chill Water In / Out
- 1.0″ / 1.0″
- Suggested Water Flow
- 2000 GPH
- Net Weight
- 150 lbs / 68 kg
Features of the CTM CW-48HS Marine Chiller / 48000 BTUs
Compact Design- Designed to save space on board, making it an ideal choice to replace existing units. Lighter and easier to carry with a sleek and modern appearance.
Metallic Electrical Box- Corrosion resistance electrical box, ensuring that electrical components inside are protected from rust and other forms of corrosion. It also, provides effective grounding and shielding against electromagnetic interference.
Titanium Condenser Coil- The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
Stainless Steel Frame Base- Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.
Advanced MCC Control Board- The MCC Control Board (Made in USA) is a fully-compatible replacement for the DDC® control board, offered with some Dometic/Marine Air Systems® chillers. MCC is a complete, standalone chiller controller that will reduce the need for manual intervention while increasing efficiency.
Reverse Cycle Heating- Enjoy powerful cooling from your CW Chiller system with the option of heating if needed. Thanks to the reverse cycle it also works as a heat pump, you can switch to heating when temperatures get low without the need of a separate heating system.
CTM Chiller Dimensions
- W – Width
- 13 in / 332 mm
- D – Depth
- 17.7 in / 450 mm
- H – Height
- 19.6 in / 500 mm
Substitute the Following OEM Part Numbers
The CTM CW-48HS Marine Chiller System serves as the perfect drop-in replacement for the following chiller models, with a smaller footprint and using the same DDC circuit board and controls
| CTM Unit Part Number | Description | Fits OEM Part number | OEM Description |
| 33521W | CW-48H 230V 50/60HZ 410A | 260162039 | MCGX48 2361 SMARTSTART |
| 260162011 | MCGX48 2363 | ||
| 260111435 | TWCX48 2361 DDC 410A | ||
| 260111443 | TWCX48 2361 DDC 410A SS | ||
| 260111418 | TWCX48 2251 DDC 410A SS | ||
| 260160001 | VARC48 / VARCX48 |
CTM CW-48HS Chiller Control Board Diagram
CTM Marine Warranty
The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.
In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.
For more detailed information please download the Manual and refer to page 17.
